OptiPowerTools.Hangfire: A Drop-in Hangfire Integration for Optimizely CMS 12
by Stanisław Szołkowski
Back in 2024, I wrote a post on Adding Hangfire to Episerver/Optimizely CMS 12, walking through each step of integrating Hangfire into an Optimizely project — the authorization filter, the controller, the view with an iframe, the menu provider, the startup wiring. It was a fair amount of boilerplate, but it worked and people found it useful.
What I didn’t expect was the interest it would generate. The post kept getting traffic, and several readers asked whether this could be a reusable package instead of a manual setup guide.
Fair point. So I built one. Meet OptiPowerTools.Hangfire — a drop-in NuGet package that turns all of that manual setup into two lines of code.
Getting started
The package wraps everything from the original blog post — and more — into two extension methods. Here’s the minimal setup in Program.cs or Startup.cs:
// In Program.cs or Startup.cs
services.AddOptiPowerToolHangfire(options =>
{
options.ConnectionString = Configuration.GetConnectionString("HangfireConnection");
});
// In the middleware pipeline (after UseAuthentication/UseAuthorization)
app.UseOptiPowerToolHangfire();
That’s it. This registers Hangfire with SQL Server storage, starts the background server, enables the dashboard with Optimizely role-based authorization, and adds a menu item to the CMS navigation. Everything that took multiple files and classes in the original post is now two lines of code.
Features out of the box

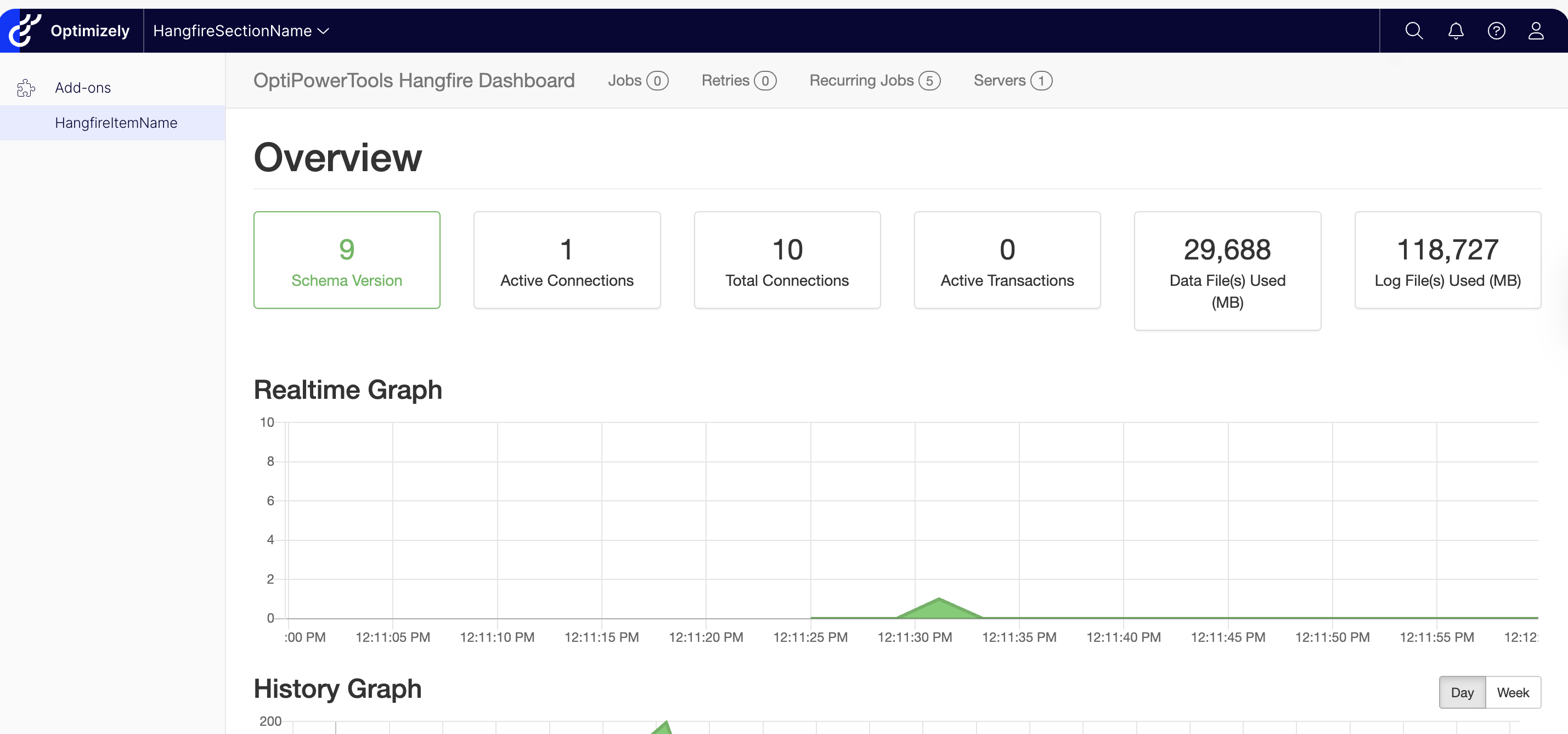

The dashboard is embedded in the CMS shell, so it feels like a native part of Optimizely rather than a separate tool:
- Hangfire Dashboard with proper Optimizely navigation chrome
- Role-based authorization — by default, only Administrators, CmsAdmins, and WebAdmins can access the dashboard
- CMS menu integration with three placement options: under the CMS section (default), as a top-level nav item, or in a custom section group
Jobs get rich console output out of the box — Hangfire.Console is enabled by default. Inject PerformContext into your job method and use context.WriteLine() to write directly to the job’s console in the dashboard, just like I showed in the original post.
- Configurable everything — dashboard path, title, authorized roles, schema name, menu placement, and more
- Feature toggles — enable or disable the dashboard, console, CMS menu, or standard authorization independently
- Targets net6.0, net8.0, net9.0, and net10.0
Configuration
All options except ConnectionString have sensible defaults. You can configure via code, appsettings.json, or both (code overrides config). The full options look like this:
{
"OptiPowerTools": {
"Hangfire": {
"ConnectionString": "Server=.;Database=MyDb;Trusted_Connection=True;",
"DashboardPath": "/episerver/backoffice/Plugins/hangfire",
"DashboardTitle": "OptiPowerTools Hangfire Dashboard",
"AuthorizedRoles": ["Administrators", "CmsAdmins", "WebAdmins"],
"SchemaName": "hangfire",
"EnableDashboard": true,
"EnableConsole": true,
"EnableCmsMenu": true,
"EnableStandardAuthorization": true,
"MenuPlacement": "CmsSection",
"JobExpirationCheckInterval": "00:15:00"
}
}
}
If the defaults work for you, you don’t need any of this — just provide the connection string and go.
Custom authorization
The built-in filter checks Optimizely roles, but you can bring your own IDashboardAuthorizationFilter using the generic overload:
services.AddOptiPowerToolHangfire<MyCustomAuthFilter>(options =>
{
options.ConnectionString = Configuration.GetConnectionString("HangfireConnection");
});
Or disable authorization entirely for development:
services.AddOptiPowerToolHangfire(options =>
{
options.ConnectionString = Configuration.GetConnectionString("HangfireConnection");
options.EnableStandardAuthorization = false;
});
Built-in job filters
This is where things go beyond the original blog post. The package ships with four attribute-based job filters for common patterns I’ve seen (and written about) in production Optimizely projects. In Part 3: Hangfire Integration, I covered job dependencies and concurrency challenges when running multiple Hangfire jobs against the same data. These filters address exactly those scenarios.
MutualExclusion
Prevents concurrent execution of jobs sharing the same resource group using Hangfire distributed locks. No race conditions, no blocking — the worker thread is freed immediately and the job is rescheduled.
[MutualExclusion("data-pipeline")]
public class DataImportJob
{
public void Execute() { /* ... */ }
}
[MutualExclusion("data-pipeline")]
public class DataExportJob
{
public void Execute() { /* ... */ }
}
When DataImportJob is running, DataExportJob gets rescheduled automatically (and vice versa).
WaitForOtherJobs
One-directional dependency — prevents a job from executing while specific other job types are processing. Only the decorated job needs the attribute.
[WaitForOtherJobs(typeof(DataImportJob))]
public class ReportGeneratorJob
{
public void Execute() { /* ... */ }
}
ExpireOnSuccess
Reduces retention for succeeded jobs. Hangfire keeps succeeded jobs for 24 hours by default, which is overkill for fire-and-forget tasks or health checks.
[ExpireOnSuccess(60)] // Expire 60 seconds after success
public class NotificationJob { /* ... */ }
[ExpireOnSuccess] // Expire immediately
public class HealthCheckJob { /* ... */ }
RetainOnSuccess
The opposite — extends retention beyond the default 24 hours. Useful for weekly reports or monthly audits where you want the job history to stick around in the dashboard.
[RetainOnSuccess(180)] // Keep for 180 days
public class MonthlyAuditJob { /* ... */ }
All four filters can be combined with Hangfire’s built-in [DisableConcurrentExecution] for complete control over job execution.
Removing the package
One thing I wanted to get right: this package is a thin configuration wrapper. It does not modify Hangfire internals or change how Hangfire stores data. If your project outgrows it and you need full control, you can remove the package and configure Hangfire manually. Your existing database, jobs, and history will continue to work without any migration or data changes.
Where to get it
The source is on GitHub: szolkowski/OptiPowerTools.Hangfire
Install via NuGet from the Optimizely feed or nuget.org:
dotnet add package OptiPowerTools.Hangfire
The repository includes full documentation, a dev site using the Optimizely Foundation project for testing, and xUnit tests.
Wrapping up
What started as a blog post turned into a package because enough people asked for it. If you’re running Hangfire in an Optimizely CMS 12 project — or considering it — this should save you the boilerplate and give you a few useful job filters on top.
If you run into issues or have feature requests, open an issue on GitHub. Contributions are welcome too.
Are there other Hangfire patterns you’d like to see packaged up? Let me know in the comments. Thank you for reading!
